How to: Hard-wire in heated motorcycle gloves

Wiring a pair of heated gloves (or a vest) to the bike’s battery gives unlimited heating

Wearing heated motorcycle gloves on the road

by Jim Blackstock |

Heated kit is a brilliant addition to your winter riding if you put in a lot of miles in the cold. It allows you to wear less insulating clothing and instead, generate heat to maintain your body temperature while remaining comfortable and in clothing that isn’t too bulky.

One of the first bits of heated kit people usually choose is a pair of gloves. The hands can be very exposed and fingertips and the back of the hand won’t be kept warm by heated grips. But this guide is equally applicable to other items like socks, trousers and vests.

Many heated gloves come with batteries, but housing these in pouches somewhere on the glove – usually around the cuff – can make them bulky and uncomfortable, depending on how you wear your gloves and jacket cuffs.

Related: Read our review of the Furygan Blizzard heated gloves featured here

Battery power also has a finite life and if you’re on a long or multi-day ride, and need them on more than one day, you could run out of power or have to charge them overnight.

The answer for many is to connect the heated kit – which can include gloves but also vests, jacket and socks – to the bike’s battery using an appropriate hard-wire kit. This means that you can run your heated kit at whatever level you want, safe in the knowledge that the energy won’t run out at any point.

Fitting a hard-wiring harness is basically always the same, irrespective of the heated kit itself; the only difference will be where the wiring in your clothing goes. We are showing how to fit a kit to power gloves here, but the same principle can be applied to a jacket, trousers or socks with a connection to the bike around the seating area.

So, here are the steps involved in fitting a hard-wiring kit:

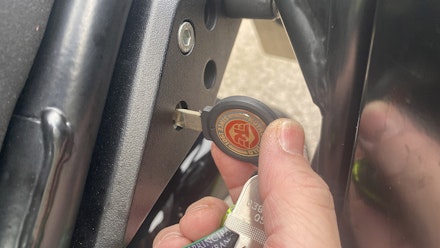

Step 1:

Start by using the key to remove the seat. On our Himalayan, it nestled between the pannier mount and the seat on the left-hand side, under the front of the pillion pad

Using the key to release pillion seat
©Photo: Bauer Media

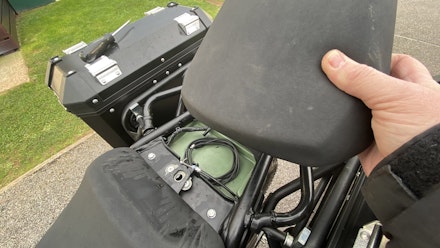

Step 2:

The pillion seat comes off first, followed by...

Remove pillion seat
©Photo: Bauer Media

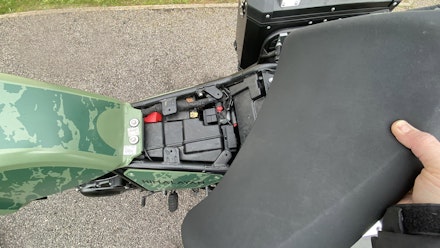

Step 3:

...the rider’s seat, revealing the fusebox, relays and the battery.

Remove main motorcycle seat
©Photo: Bauer Media

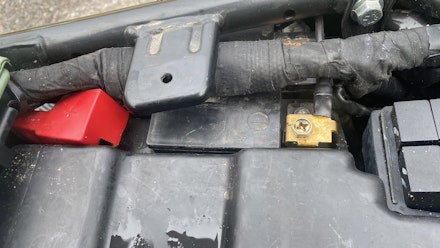

Step 4:

Here is the Enfield’s battery, tucked away to the side of the area with the familiar cover over the positive terminal.

Royal Enfield Himalayan battery location
©Photo: Bauer Media

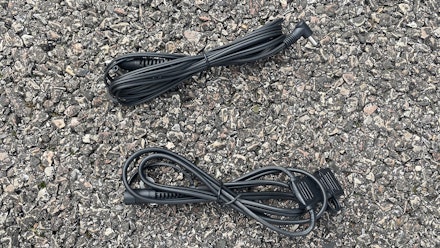

Step 5:

We’re fitting wiring for heated gloves, but most clothing will come with the same; a harness to go on the bike and one to go in the clothing to connect to it.

Heated kit wires
©Photo: Bauer Media

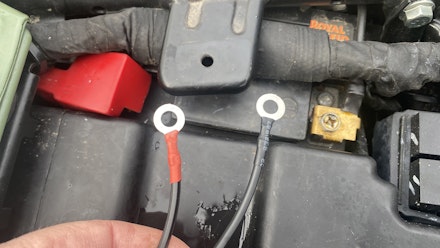

Step 6:

The bike harness comes with pre-fitted ring terminals and an inline fuse holder. We left the fuse-holder empty at this stage.

Battery terminal connectors
©Photo: Bauer Media

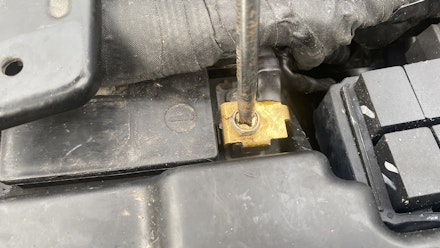

Step 7:

We started by fitting the earth terminal. The screw holding the main terminal to the battery was tight but not overly so.

Unscrewing motorcycle battery terminal
©Photo: Bauer Media

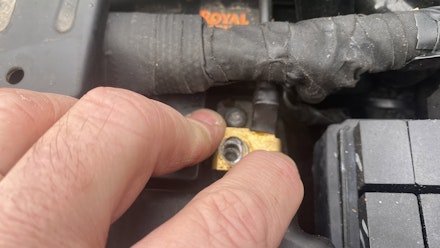

Step 8:

With the retaining screw removed, we held the terminal onto the battery so there was no interruption to power for the bike, so we didn’t have to reset the clock, for example, or disturb any electronics.

Holding battery terminal in place
©Photo: Bauer Media

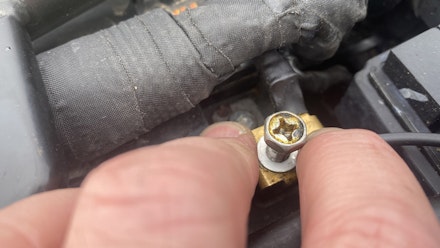

Step 9:

We fitted the retaining screw to the terminal with the flat side of the harness terminal against the battery and started the screw back into the captive nut in the battery’s terminal.

Attaching battery terminal connector
©Photo: Bauer Media

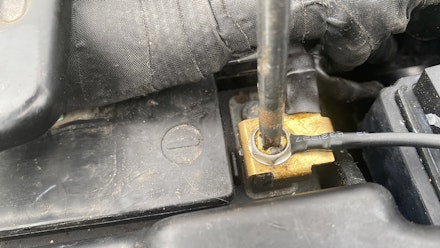

Step 10:

Once we were sure the screw had started properly (make sure you don’t cross-thread it here) we tightened the screw down fully.

Tighten down battery terminal screw
©Photo: Bauer Media

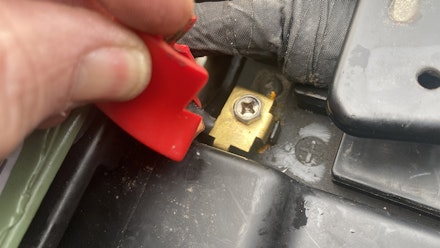

Step 11:

To get to the positive terminal of the battery, you need to move the cover to the side, exposing the screw. Be careful not to touch any bodywork with the shaft of the screwdriver when removing this screw.

Repeat connection process on positive terminal
©Photo: Bauer Media

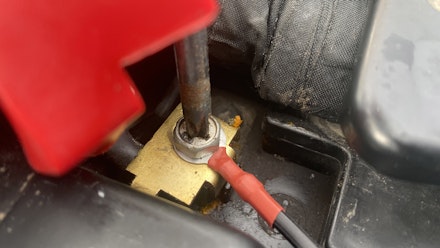

Step 12:

We repeated the process from the earth terminal with the positive on the battery, with the harness connector flat-side down and tightened the screw.

Screwing down positive battery connector
©Photo: Bauer Media

Step 13:

We routed the harness cable so that the cover over the battery’s positive terminal could be refitted in the right place to protect it.

Route battery connector cable and recover positive terminal
©Photo: Bauer Media

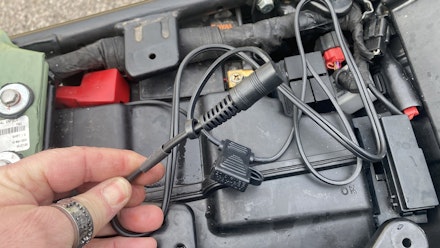

Step 14:

The harness has plenty of length to it, allowing you to position the connector plug wherever you want.

Position heated kit connector plug where you want it
©Photo: Bauer Media

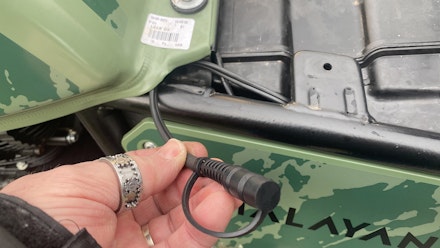

Step 15:

We tend to prefer the connector at the front of the seat area, so it is easier to connect to the garment wiring at the hem of the jacket.

Connector plug for heated kit positioned on left side near the tank
©Photo: Bauer Media

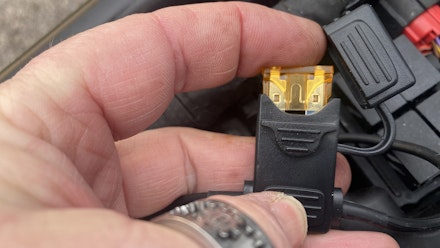

Step 16:

The wiring kit we used came with a bag of fuses and no real indication on which to use, so we went for 5 amp, to begin with. This gives good protection but isn’t so low it trips when the gloves are on full power.

Fitting a 5A fuse to heated kit connection cable
©Photo: Bauer Media

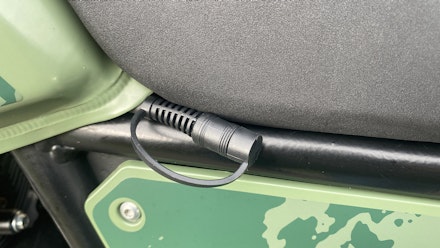

Step 17:

Once we’d finished, all that is visible to the outside world is the connector socket at the front of the seat. There is plenty of slack inside so that it can be pulled out as required.

Heated motorcycle kit connector plug
©Photo: Bauer Media

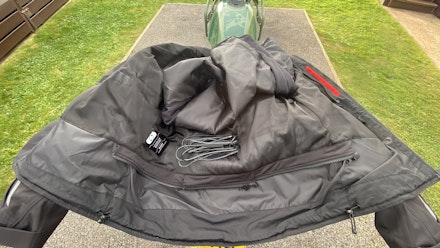

Step 18:

Now it’s time to fit the harness to the jacket, to carry power from the connector on the bike to the gloves themselves.

Fitting heated glove wire harness to jacket
©Photo: Bauer Media

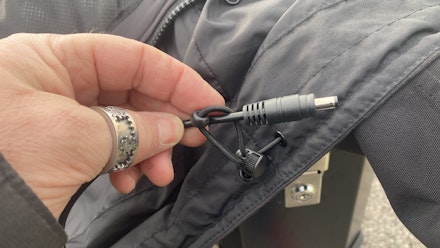

Step 19:

We usually feed the main connector plug on the jacket through a drawstring fastener at the hem, so that it keeps it in place.

Use jacket features to keep wiring in place
©Photo: Bauer Media

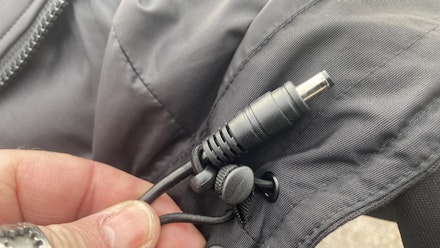

Step 20:

We pulled the drawstring fastener tight to keep a decent grip on the cable so it can be pulled out if necessary to meet the connector on the bike but will also keep the cable out of the way if you’re not using the electrical heating.

A drawstring holds heated kit wire in place
©Photo: Bauer Media

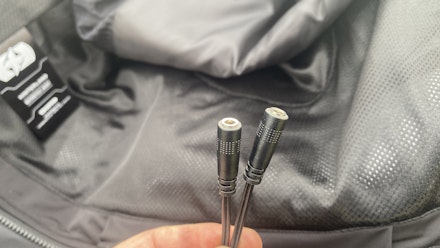

Step 21:

The other end of the jacket harness is a pair of connectors, one designed to go down each sleeve to the cuff, for connecting to the respective glove.

Heated glove connectors
©Photo: Bauer Media

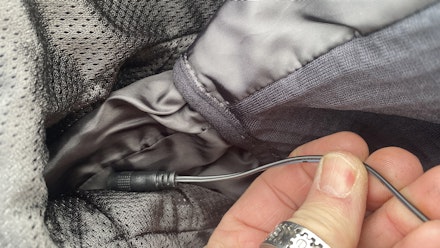

Step 22:

Start by feeding a cable down each sleeve, between the thermal liner and the jacket outer.

Feed the connector cable down jacket sleeve
©Photo: Bauer Media

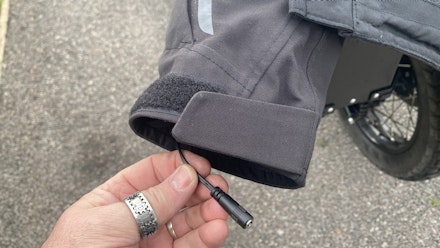

Step 23:

Put your hand up each sleeve and grab the connector, gently pulling it out until it emerges from the cuff.

Pull connector wire gently from the cuff
©Photo: Bauer Media

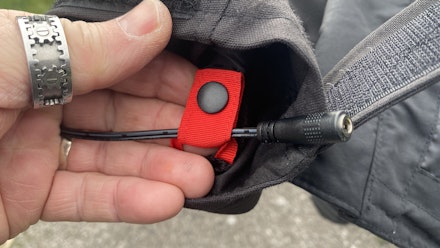

Step 24:

So that the cables don’t end up retracting themselves into the sleeve and you lose them, we usually run them through one of the popper loops used to hold the thermal liner into the sleeve of the outer. Choose the best position to suit the gloves. On ours, they were at the bottom of the wrist.

Threading cable through liner popper
©Photo: Bauer Media

Step 25:

Now time to connect it all up to make sure it works. Start by sitting on the bike and pulling some of the bike's harness out and plugging the jacket into the socket.

Connect the harness to the wiring plug on the bike
©Photo: Bauer Media

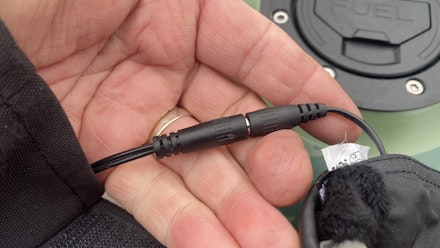

Step 26:

Then do the same with each glove; it may be a bit fiddly but a little extra cable may help. Before you set off, make sure you tuck any excess cable out of the way, so it won’t interfere with your riding.

Connect each glove to the cuffs as you put them on
©Photo: Bauer Media

Step 27:

There you go – ready to head off into whatever the elements have in store for you with warm fingers and hands.
